SMART™ Swager with available Swager Guarding™

Features of the SMART™ Swager with Swager Guarding™

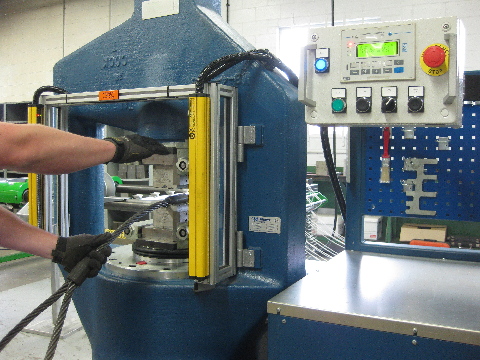

Swager Guarding™ allows trained operators to swage wire rope slings without risk of injury caused by pinch points. New and innovative technology permits a full range of wire rope diameters to move freely within the swaging zone. The system automatically stops when the operator gets too close, and easily resets to continue swaging.

Features of the SMART™ Swager with Swager Guarding™

  • Incorporates a universal die pocket to accommodate both ONE PRESS® and multi-press dies, which are quickly and easily installed using a modern reliable eccentric clamping system.
  • The pump and motor are fully enclosed and insulated.
  • The swager operates at a very low noise level of 60-68 decibels.
  • The main controls and the electric foot pedal can be repositioned for easy accessibility.
  • Stroke limiter and hold modes are easily programmed to save time and energy.
  • Production and maintenance tracking is easy as the control system counts and records the total number of swages and operational hours. It records overloads and provides maintenance alerts. Alarms indicate if the oil level is low and if the oil and filter needs to be changed.

For more information on the SMART™ Swager with Swager Guarding™, please contact us today at 905-859-3901. You can also download our sales sheet or view our video.

Spotlight on
Innovation

PLC controlled Smart Swager™ with Swager Guarding

PLC controlled Smart Swager™ with Swager Guarding


The fastest and most reliable method of swaging Flemish eye wire rope slings and assemblies

The fastest and most reliable method of swaging Flemish eye wire rope slings and assemblies
